DreamStation Auto CPAP with Humidifier by Philips Respironics (DSX500H11)
Note: Using ozone to clean inside the DreamStation machine is NOT approved by Philips Respironics because it damages the machine.

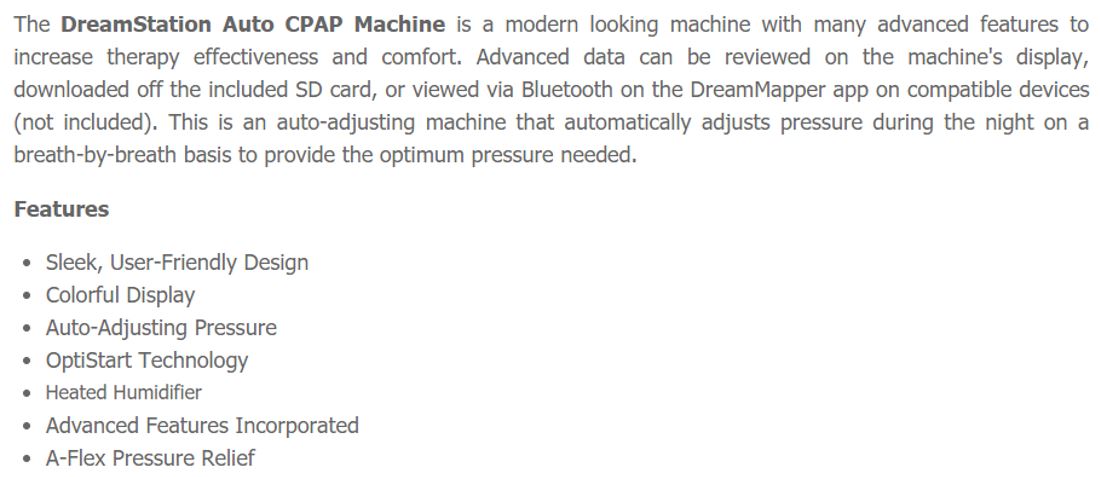

The DreamStation Auto CPAP Machine is a modern looking machine with many advanced features to increase therapy effectiveness and comfort. Advanced data can be reviewed on the machine's display, downloaded off the included SD card, or viewed via Bluetooth on the DreamMapper app on compatible devices (not included). This is an auto-adjusting machine that automatically adjusts pressure during the night on a breath-by-breath basis to provide the optimum pressure needed.

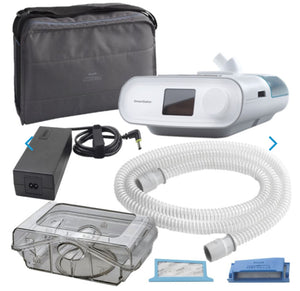

DreamStation Auto CPAP Machine
Dark Blue Reusable Filter (Installed)
Light Blue Disposable Filter
80W Power Supply
Note: This model does NOT include Heated Tube. Also, Philips Respironics stopped including SD card in 2020. They prefer patients to use wifi modem or cell modem and send data remotely. You just get a modem and it will send data daily to your doctor for free. You can also purchase an SD card separately.
Sleek, User-Friendly Design
Advanced Features Incorporated
A-Flex Pressure Relief

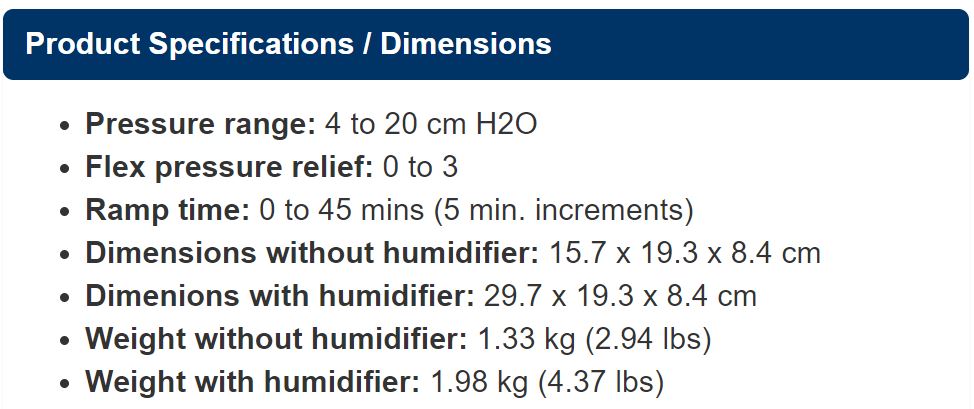

Dimensions - Machine Alone: 7.6 in W x 6.2 in L x 3.3 in H
Dimensions - Machine Optional Heated Humidifier 11.7 in L x 7.6 in W x 3.3 in H
Weight - Machine with Heated Humidifier and Power Supply: Approx. 4.37 lbs
Pressure Range: 4-20 cm H2O, 0.5 increments
Noise Level - Machine Alone: 25.8 dBA

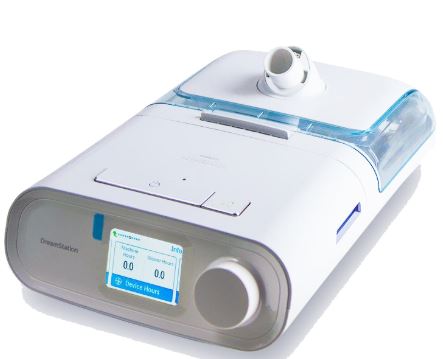

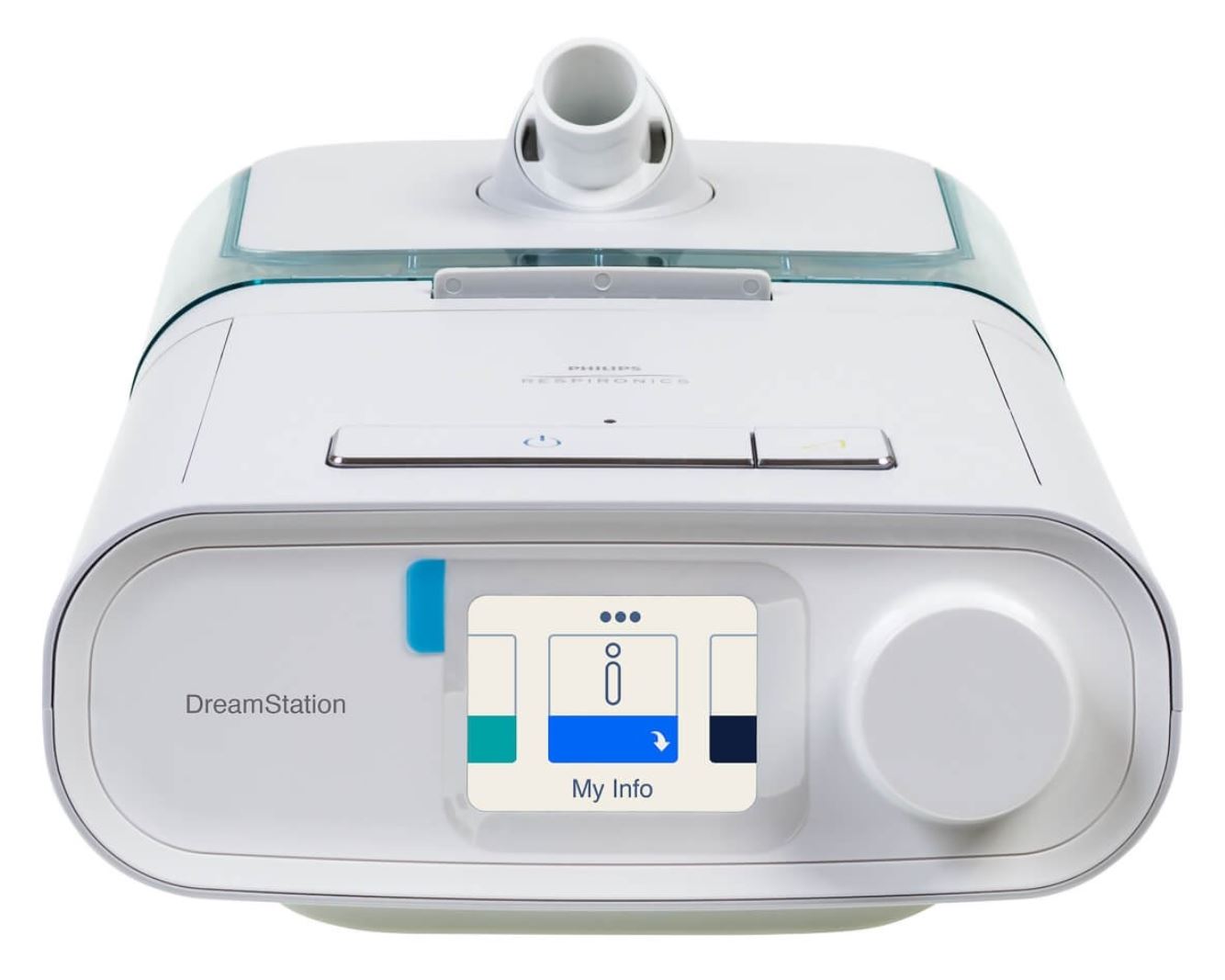

Sleek, User-Friendly Design with Colorful Display

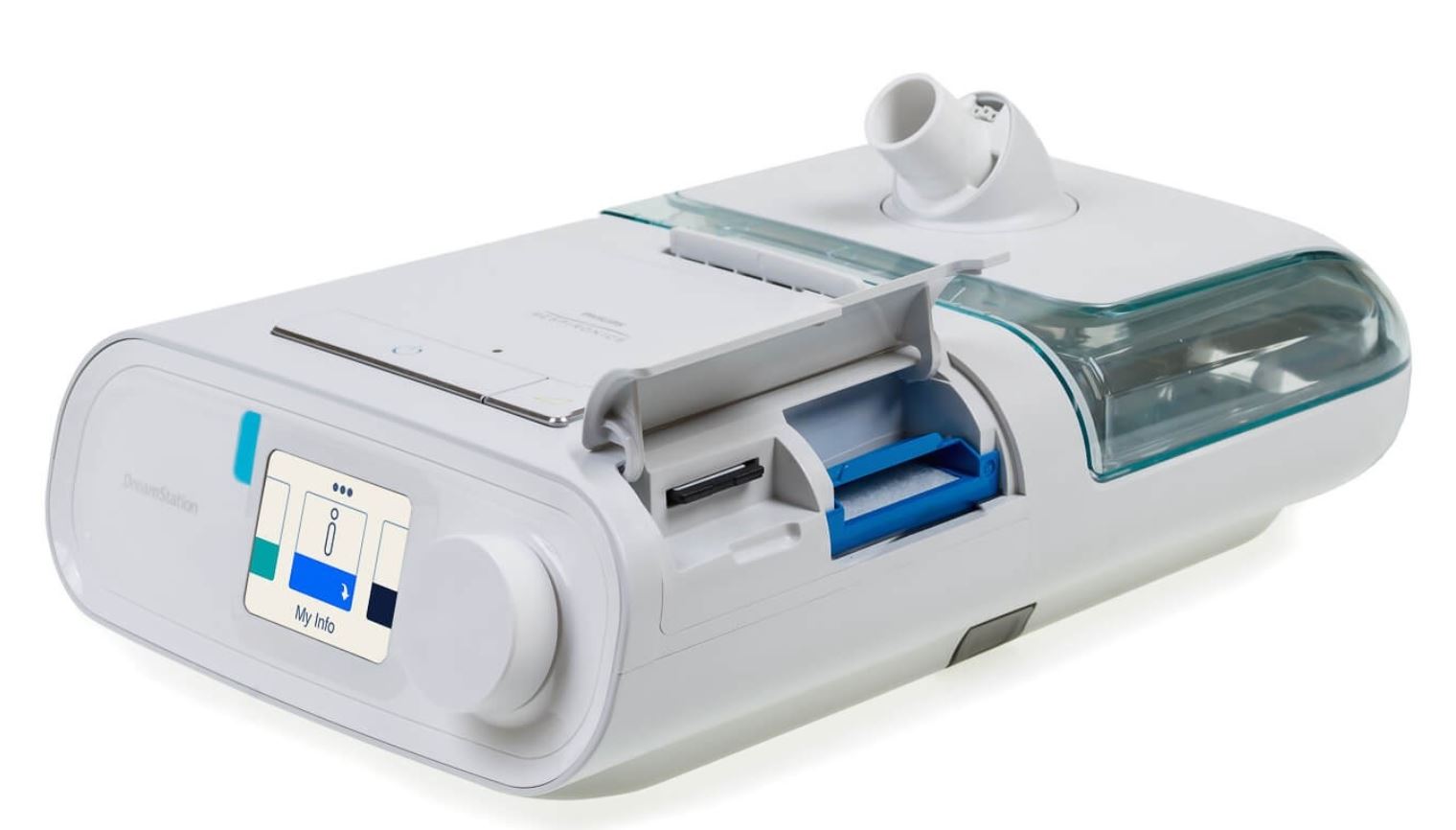

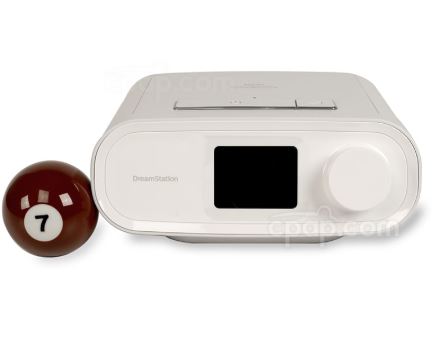

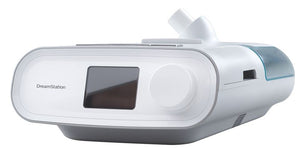

The DreamStation machine is a sleek white color and measures 7.6 inches x 6.2 inches x 3.3 inches and weighs 2.94 lbs making it smaller and lighter than the System One models by Respironics. The machine has a front-facing color display with a large dial for navigating menus. Menus and settings are navigated through and changed by turning and pressing the dial as needed. An ambient light sensor on the top of the machine allows the machine to adjust screen brightness depending on light levels in the room. The DreamStation Auto has tray style filters that slide in and out of the machine easily for cleaning and replacement. The darker blue filter is a reusable filter which should be washed regularly, and the lighter blue is a disposable filter which should be replaced every 30 days or sooner if dirty.
Auto-Adjusting Pressure and Opti-Start Technology
The DreamStation Auto monitors the user throughout the night to provide pressures as needed when events occur. The machine remains at the lower pressure of the auto-adjusting range, and if an event is detected, increases pressure up to the upper pressure of the range to support the airway. With Opti-Start enabled, the machine begins therapy at 90% of the pressure reached in the previous session to help address residual events that may occur early in therapy.
DreamStation Heated Humidifier

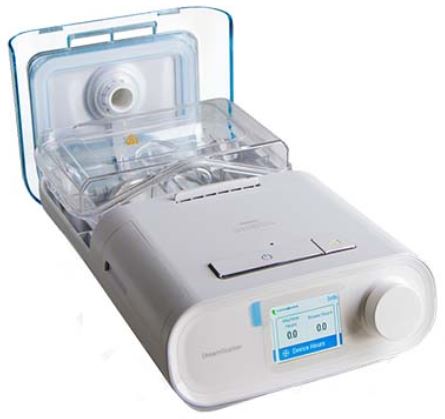

The integrated heated humidifier for use with the DreamStation Auto. The heated humidifier connects directly to the machine and features dry box technology to help reduce the chance of water entering the machine from the humidifier. The water chamber is dishwasher safe and is designed to be easily taken out for cleaning and filling. The chamber sits inside the humidifier and with the lid open can be lifted straight out of the humidifier and sat back inside and the lid closed to be ready for use again.
The humidifier can be set in a standard heating mode which provides constant heat levels throughout the night, with both the humidifier and heated tube having heat settings of 0 to 5 with 0 being off and 5 being the highest heat. Adaptive mode is also available which monitors ambient humidity and automatically adjusts heat levels during the night to provide optimum humidity. Preheat will heat the humidifier up to 30 minutes before starting therapy.
Advanced Features Incorporated
The DreamStation Auto CPAP has many advanced features included to help the user track and monitor therapy effectiveness. Some of the incorporated features include:
SmartRamp: Unlike a traditional ramp that increases pressure constantly over a set amount of time, SmartRamp will monitor the user and increase pressure only if an event occurs. During SmartRamp if an event requires which requires the lowest pressure of the APAP range, ramp will conclude. Traditional ramp is also available if desired. The APAP therapy range must be greater than 4 cm H2O in order for ramp to be used.
Advanced Data Displayed: The machine will show on-screen advanced data such as AHI, Periodic Breathing, Leak Rate, and Therapy Hours. It will also show the pressure the machine was at or below 90% of the time, which is used for Opti-Start.
Mask Fit Check: This feature will provide airflow to the mask and display if leaks are detected in the mask. As the mask is adjusted the machine's display will update to advise if a proper fit is detected.
Auto On/Off: The DreamStation APAP can detect if the user has their mask on or off and will begin or stop therapy accordingly if enabled.

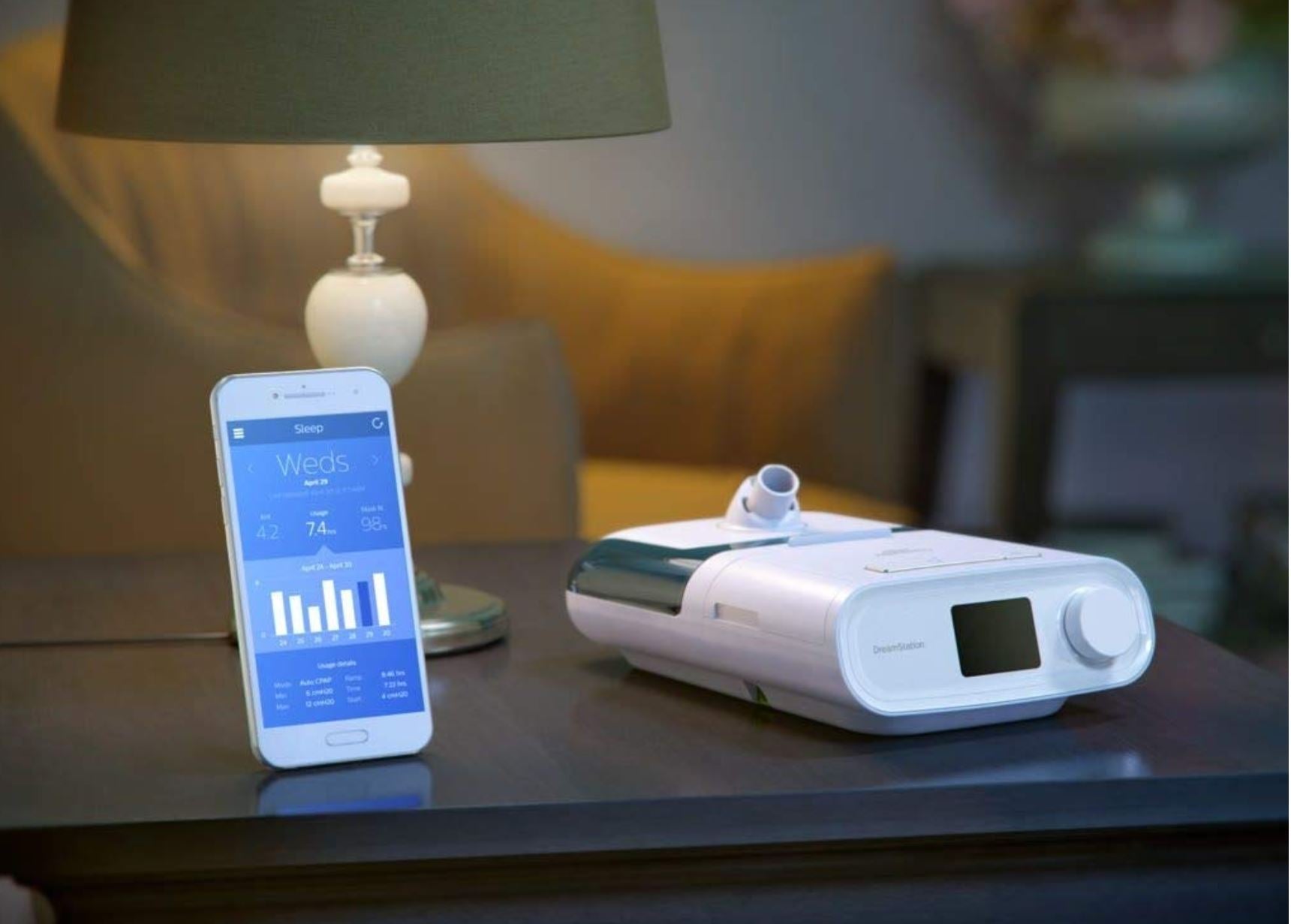

Bluetooth Connectivity: Bluetooth is built-in to connect to the DreamMapper app to track therapy. The DreamMapper app is available on compatible iOS (iOS 6 or newer) and Android devices (2.2 or newer) and can be downloaded in the iTunes App Store or the Google Play Store. iOS and Android device not included.
Regular Alerts/Reminders: Every 30 days the machine will show a reminder to change filters.
A-Flex Pressure Relief
A-Flex helps mimic natural breathing patterns by lowering pressure during exhalation. The transition between inhalation and exhalation is also softened, making breathing more natural. As the machine adjusts pressure during the night, A-Flex also adjusts so that the desired amount of relief for exhalation is always given.
We Sell Only Genuine Philips Respironics Machine. Brand New. Instruction on how to adjust therapy pressure comes with machine. Free Lifetime 24/7 Technical Support by email or phone.
